Application of Embedded Systems: Emulator to Reality

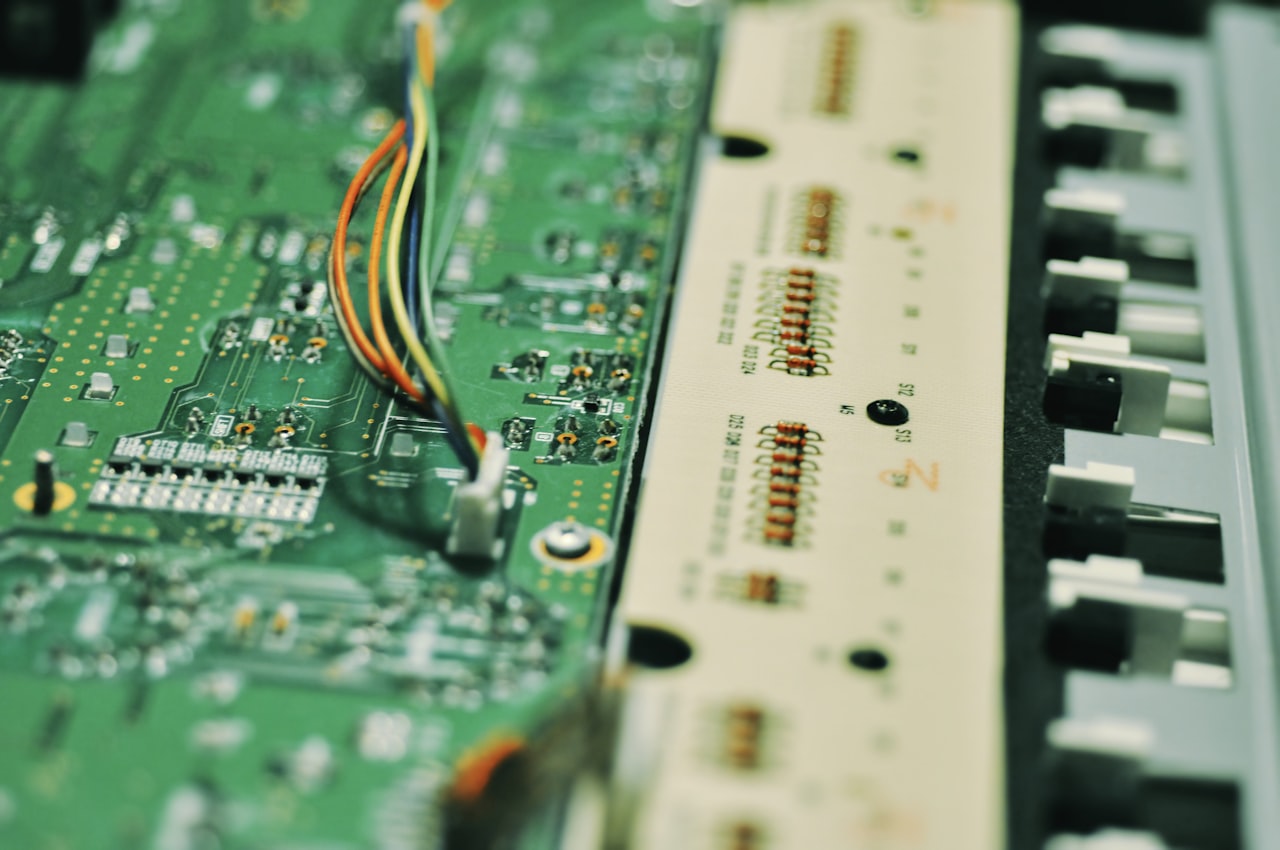

Cover image by Bodega via Unsplash

The modern world of technology would not be possible without embedded systems, which run everything and anything, including smartphones and medical equipment, cars and industrial processes. Such systems usually come with stringent resource constraints, like limited memory, computing power and energy. Therefore, to create effective and trustworthy embedded systems, one must have a good knowledge of optimization methods. In the present paper we are going to consider the Embedded system optimization steps, starting with the emulator and ending with the real world deployment. The idea is to have the system efficient, reliable and within the limits of the hardware on which it is running.

In this paper, we will explore the key steps in embedded development services starting with emulation and moving through to real-world deployment. The goal is to ensure that the system remains efficient, reliable, and optimized for the hardware on which it runs. Additionally, we will showcase how these optimization techniques were applied to a mobile and embedded project by Embrox Solutions, using a real-world case study.

Embedded Emulation Development

Emulation during the development of embedded systems is the process of constructing the virtual environment that mimics the behavior of hardware platforms. Such a method enables developers to test and debug software prior to its implementation on real hardware thereby saving time and money.

Benefits of Emulation:

• Cost-Effectiveness: Emulation eliminates the use of physical hardware at the initial development phase and this saves costs.
• Accessibility: Emulators allow developers to test their software through their computers or laptops without the need to have the actual embedded device.

But this is not without limits. Emulators do not always accurately simulate the resource limitations of real hardware, including memory, CPU performance and real-time performance. Such differences may cause deviations in performance measures, and it is important to optimize code before the actual deployment on real devices.

Difficulties of Switching to Real Devices

After testing the embedded system with an emulator, the next procedure is to install it on actual hardware. Such transition can be quite challenging in many cases because of the resource constraints of the embedded devices:

Hardware Constraints:

• Memory Constraints: The RAM and storage of most embedded devices are very minimal. It is necessary to optimize the memory allocation to avoid the system crash or failure.
• Processing Power: Embedded devices may have a weaker processor compared to the normal desktop systems. It is important to optimize algorithms to perform well on these processors so that the system can work well.

Environmental Factors:

• Power: A good number of embedded systems like mobile systems or IoT sensors are battery-operated. Thus, one of the essential tasks is to reduce the power usage to prolong the battery life of the device.
• Thermal Management: The embedded systems tend to be used in small, confined areas and hence heat dissipation is a significant issue. Proper cooling mechanisms should be put in place to prevent overheating and system wear-out.

Real-Time Constraints:

• Latency Sensitivity: Embedded systems which have to comply with stringent latency requirements are found in automotive or healthcare. The inability to meet such requirements may lead to the failure of the system or a serious error.
• Predictability: Embedded systems are required to be deterministic (i.e. the system must be predictable even when faced with changing workloads) whereas general-purpose computing does not require determinism.

Optimization Techniques for Embedded Systems

To overcome these difficulties embedded system developers use several optimization techniques to improve performance, minimize power usage, and achieve real-time requirements.

Optimization Area	Techniques	Benefits	Challenges
Code Optimization	Compiler optimizations (loop unrolling, inlining), Algorithm optimization	Reduces execution time, Smaller code size	May increase complexity of code or reduce readability
Memory Management	Static memory allocation, Dynamic memory pooling	Efficient use of memory, Predictable behavior	Limited flexibility with static allocation, Potential fragmentation
Power Efficiency	DVFS (Dynamic Voltage and Frequency Scaling), Sleep modes	Extends battery life, Reduces energy consumption during idle times	Sleep mode transitions may introduce delays or unpredictability
Real-Time Performance	Task scheduling (RMS, EDF), Interrupt handling	Ensures time-critical tasks are executed on time, Low latency	Complex scheduling may lead to higher system overhead

Case Study: From Emulator to Real Device

The actual example of the use of these optimization methods is a project, which Embrox Solutions implemented to the EV Charging Platform. The platform included the development of an embedded system to control more than 12,000 electric vehicle (EV) charging stations, as well as both the frontend mobile applications and partner backend systems.

Challenges Encountered:

• Storage and Memory Limits: The embedded system was required to be efficient in terms of its storage and memory, particularly when dealing with huge volumes of data of thousands of users.
• Real-Time Performance: The system was required to make the charging sessions to be real time with accurate timing of billing and tracking of energy consumption.

Optimization Strategies:

• Code Optimization: Embrox optimized the backend system by implementing effective algorithms to process the data and minimize memory footprint by using static memory allocation.
• Power Efficiency: The embedded devices to control the charging stations consumed as little power as possible with the help of DVFS to use less energy when there was a low activity.
• Real-Time Performance: Task scheduling algorithms were adopted to give priority to the critical operations, thus real-time data concerning the charging sessions were updated in real-time.

Outcomes:

At the point when the system was implemented on actual hardware, the team had accomplished:

• A well optimized backend system capable of supporting large user concurrent connections.
• Low-power embedded devices that increase the lifetime of battery-powered charging stations.
• The real-time optimization, so that the users could easily monitor the charging process and pay without any delays.

Tools and Resources for Optimization

To support the optimization of embedded systems, several tools and resources are essential:

Tool Category	Tool Name	Purpose	Usage
Development Tools	Eclipse, IAR Embedded Workbench, Keil µVision	IDEs for coding, debugging, and compiling embedded systems	Writing, compiling, and debugging embedded software
Debugging Tools	GDB, JTAG Debuggers, Logic Analyzers	Identifying and resolving issues in embedded systems	Used during the debugging phase to find hardware and software issues
Profiling and Analysis	Lint, Coverity (Static), Valgrind, gprof (Dynamic)	Analyzing code for potential issues and performance bottlenecks	Detects memory leaks, optimizes code performance, and tracks execution
Hardware Platforms	Raspberry Pi, BeagleBone, Arduino	Development boards for prototyping embedded systems	Prototyping embedded systems before moving to production hardware

Best Practices to Efficient Development of Embedded Systems

Best practices are necessary in efficient development of embedded systems:

• Modular Design: Break down the system into small manageable modules which can be developed, tested and optimized separately.
• Early Testing: Test continuously, particularly during the emulator stage, so that problems can be identified, and fixed early.
• Documentation: Properly document the code, algorithms and optimization strategies to help in easy collaboration and maintenance of the code.
• Lifelong Learning: Embedded systems are constantly changing and to keep up-to-date with the most recent tools, techniques, and trends is important to have competitive advantages.

Conclusion

Embedded system optimization is a complex process that cannot be performed without the profound knowledge of hardware and software limitations. Optimization is an ongoing process that starts with running emulators to test fledgling software to a final step of running efficient and reliable code on real-life devices, making the system work as desired in real-life conditions. By implementing these techniques, as shown in EV Charging Platform case study by Embrox Solutions, we enhance the performance of the system besides the system being sustainable and long-lasting in a resource-constrained environment.

With the ever increasing field of embedded systems, come the tools and techniques that are available to the developer. Through best practices and using the right resources engineers will be able to create efficient, robust, and reliable embedded systems to address the demands of the modern industries.
